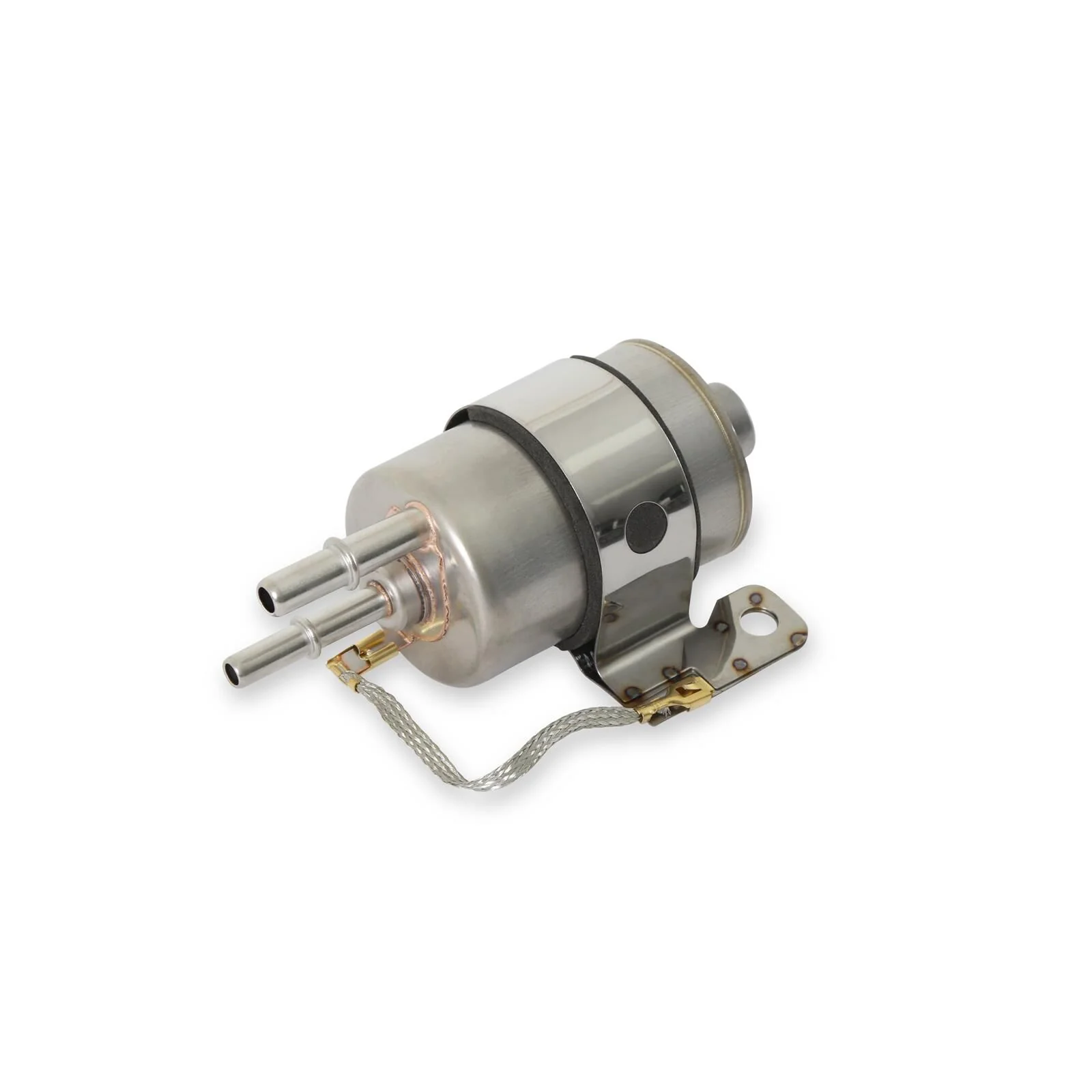

Chev LS Holley EFI GM-Style 5 Microns Fuel Filter Regulator # HO162-590

Fuel Pressure Regulators, GM EFI, Inline, Stainless Body, 0.375 in. Inlet, 5/16 in. and 3/8 in. Outlets, Quick-Connect, 5 micron, Paper Filter

Fuel Filter Style:

Inline

Inlet Quantity:

1

Fuel Filter Inlet Size:

0.375 in.

Inlet Attachment:

Quick-connect

Outlet Quantity:

2

Fuel Filter Outlet Size:

5/16 in., 3/8 in.

Outlet Attachment:

Quick-connect

Filter Element Included:

Yes

Smallest Particle Filtered:

5 microns

Filter Element Material:

Paper

Filter Housing Material:

Stainless steel

Filter Housing Color:

Natural

Overall Length (in.):

5.66 in.

Outside Diameter (in.):

2.175

Mounting Bracket Included:

Yes

Fittings Included:

No

Clamps Included:

No

Maximum Fuel Pressure (psi):

58

Quantity:

Sold individually.

Holley EFI GM-Style Fuel Filter Regulators

Holley EFI GM-style fuel filters have a built-in regulator to provide a simple and clean means to fueling your LS swap. Available with OEM-style or -6AN connections, they feature an internal regulator set at 58 psi, along with an integrated 5 nominal micron rated filter. The bypass design allows you to run one inlet with one outlet to the engine, and a return outlet back to the tank. Holley EFI fuel filter regulators are ideal when performing a LS engine swap or any other fuel injection swap that is designed to run at 58 psi of static pressure. Choose the fuel filter/regulator with the proper connections for your vehicle.

Features:

* All stainless-steel construction for improved corrosion resistance
* Designed with one inlet, one outlet, and one return
* Fixed pressure at 58 psi
* Nominal micron rating: 5
* Can be used with other EFI systems that require 58 psi
* Not recommended with fuel pumps that flow over 450 lph
* Return line required for proper regulator operation
