CVF Racing Chrysler Small Block Alternator System 318 340 360 # 360-ALT-SYSTEM

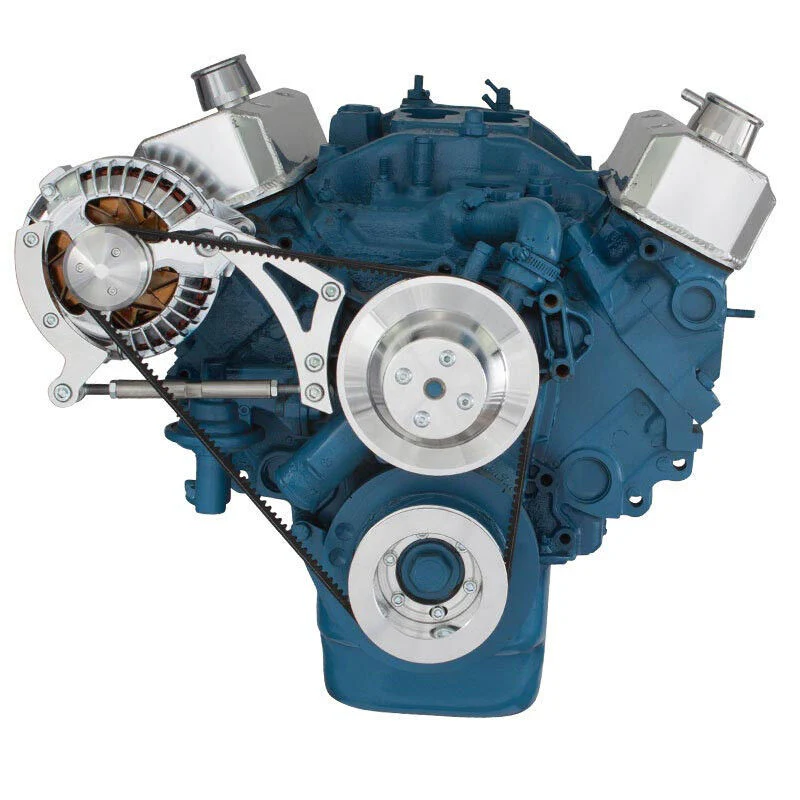

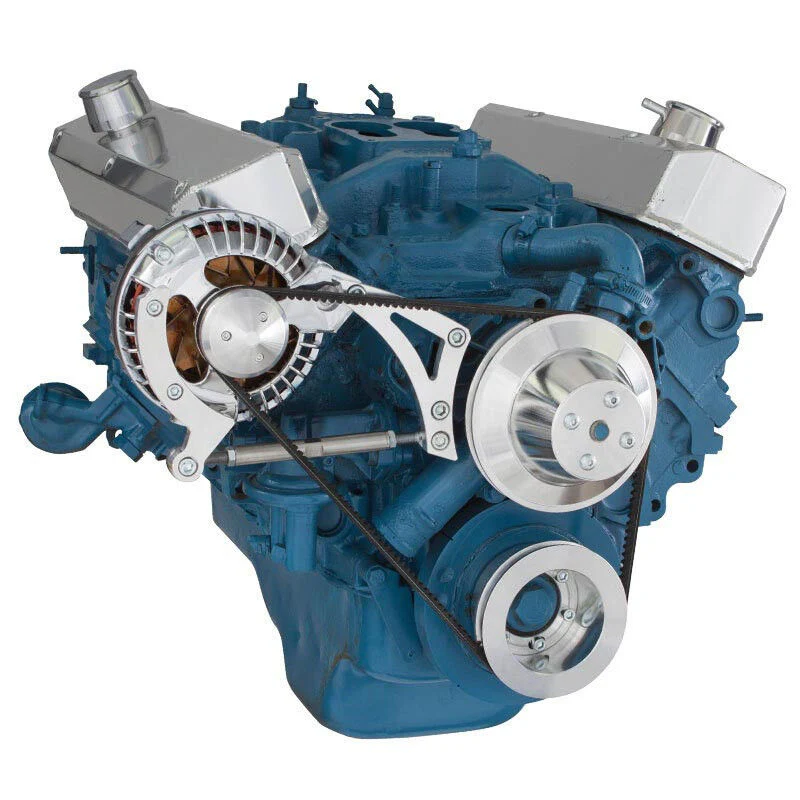

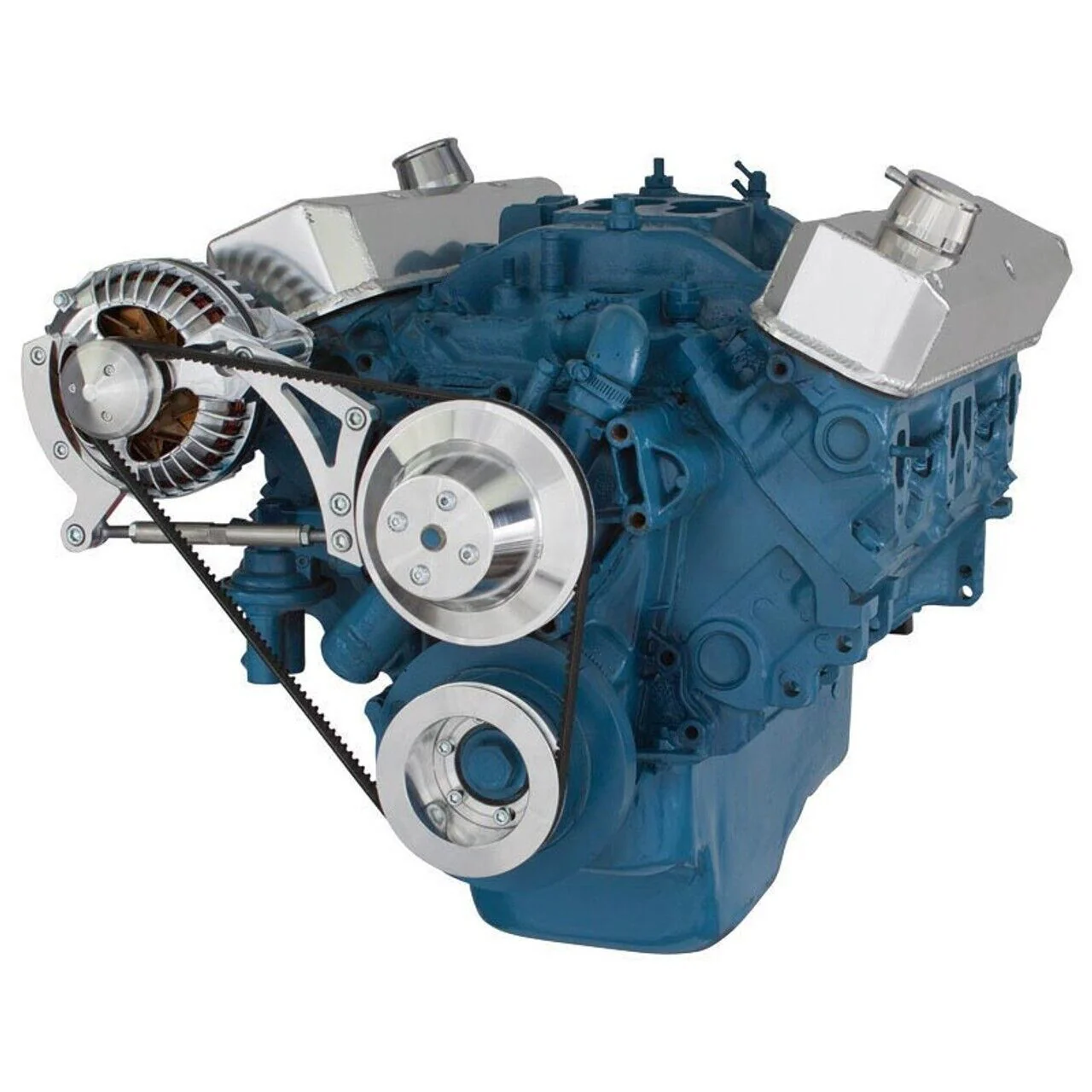

Chrysler Small Block 318-340-360 Alternator & PS Pulley and Bracket System

Complete V-belt system for small block Chrysler engines with alternator only.

Kit Includes:

• 1 Groove Crank Pulley
• 1 Groove Water Pump Pulley
• 1 Groove Alternator Pulley
• Alternator Bracket (360-ALTBRKT OR 360-ALTBRKT-GM)
• Hardware

Application Notes:

• Use with Chrysler square or round back alternator, or GM 10SI alternator.
• Compatible with Hydroboost.
• Water pump to Balancer measurement: 4.5"
• Requires a Chrysler water pump from 1970 and beyond or a CVF water pump (SCRL-WP).
• Use with Sanden 508 Style AC compressor.
• Use with Saginaw P-Series power steering pump with 5/8" Keyway and mounting stud in lower right corner on the back of the pump (see image below). Power Steering pump not included with system.
