Ford 302 351 SBF Hays Hot Street Clutch Kit 50oz Ext Balance 550hp # 93-2501

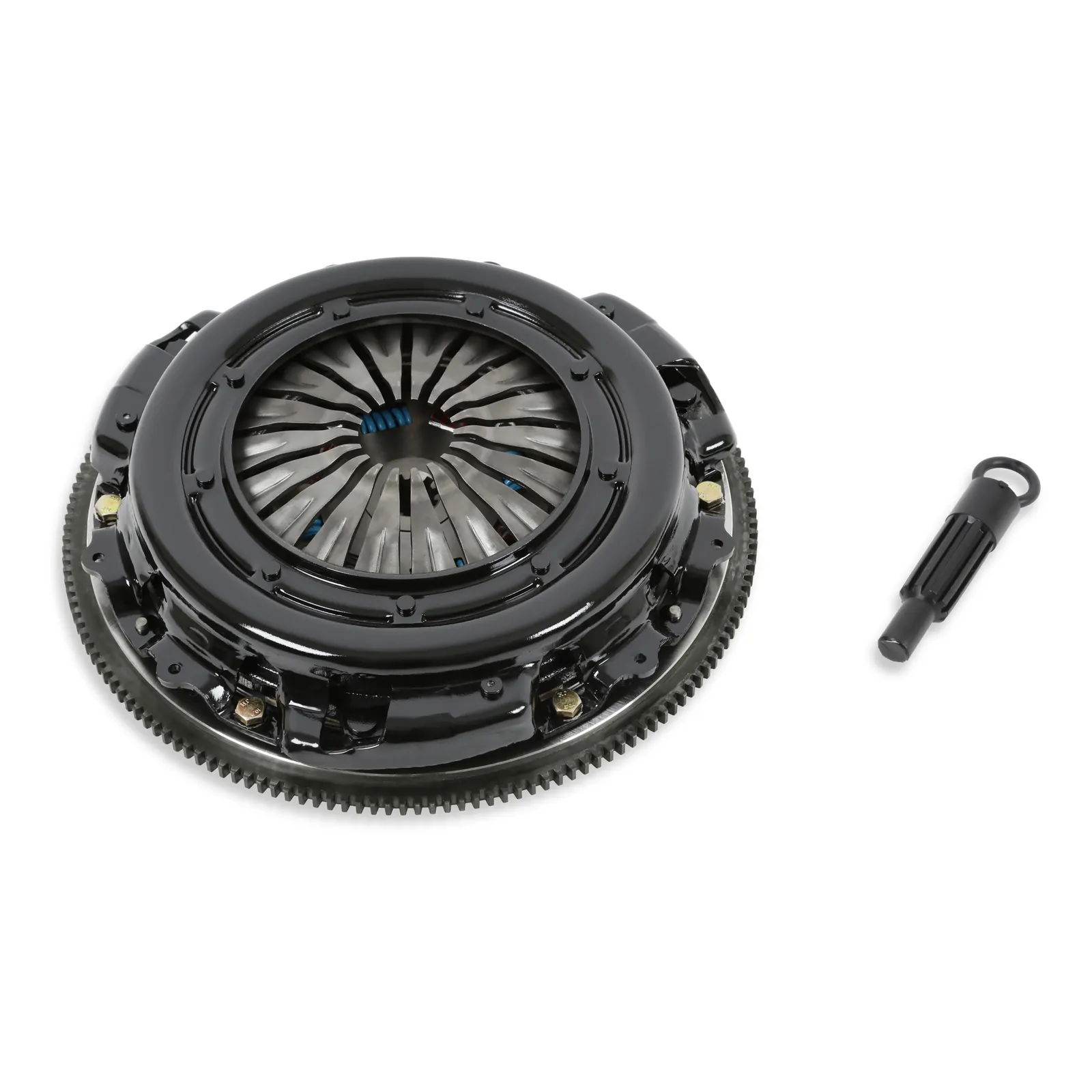

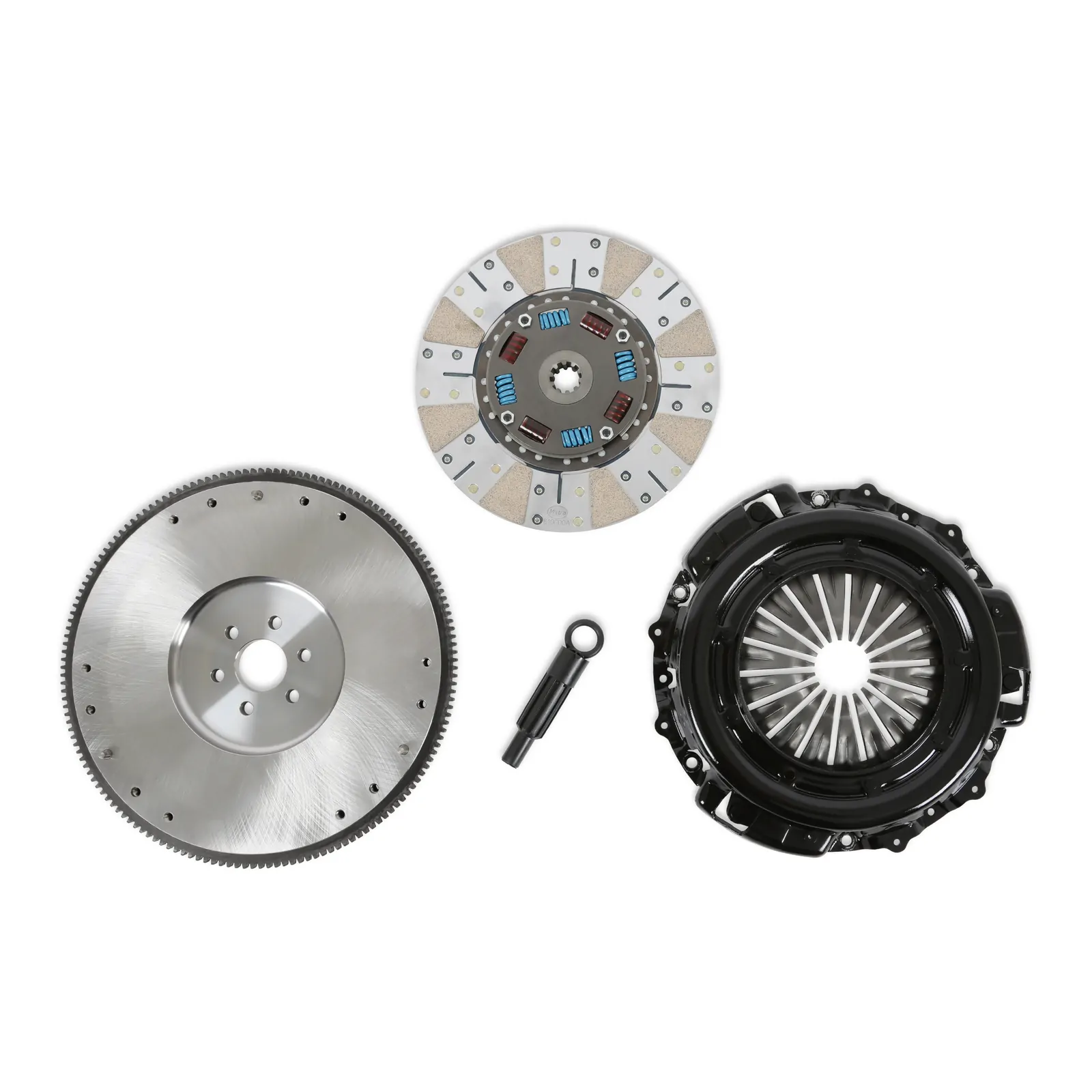

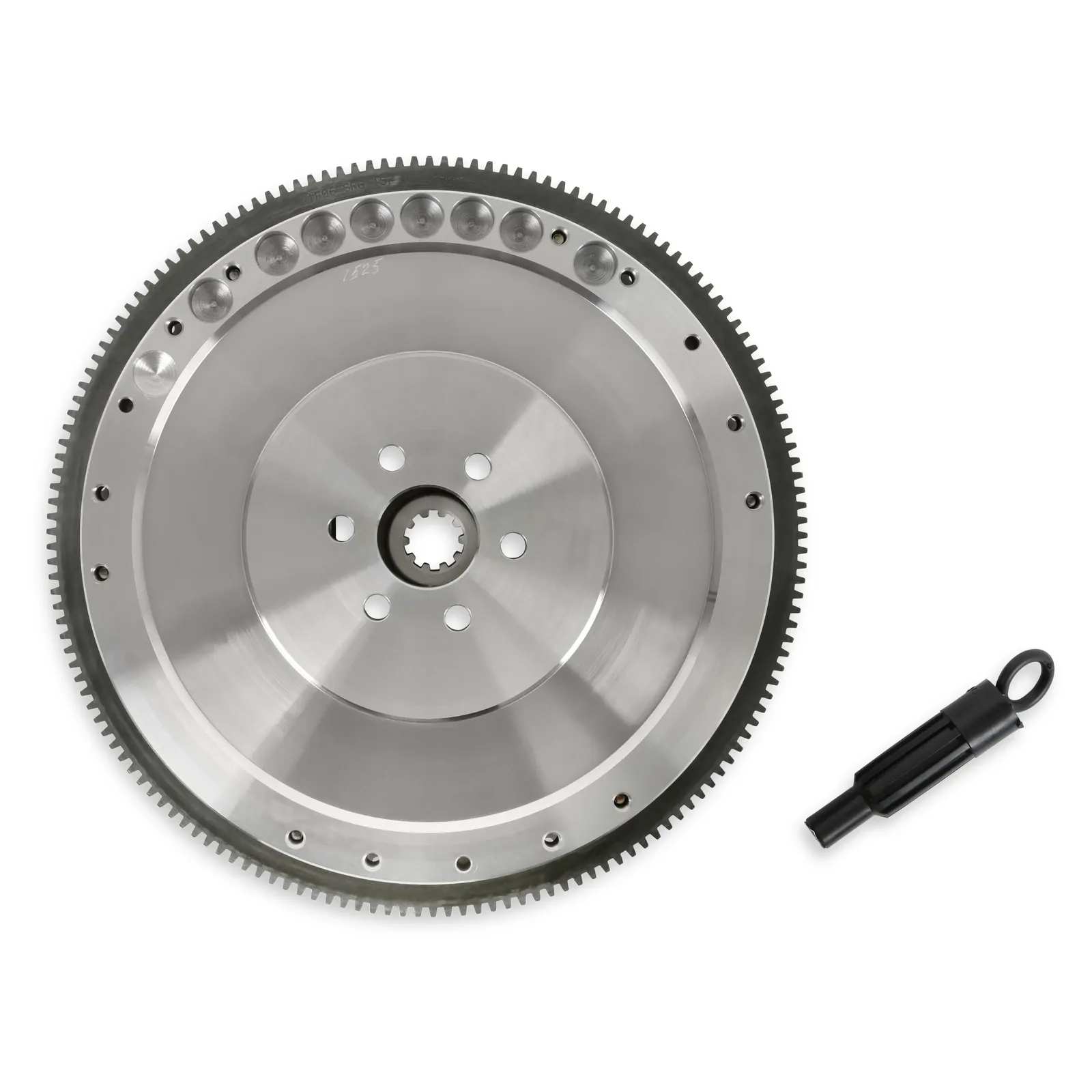

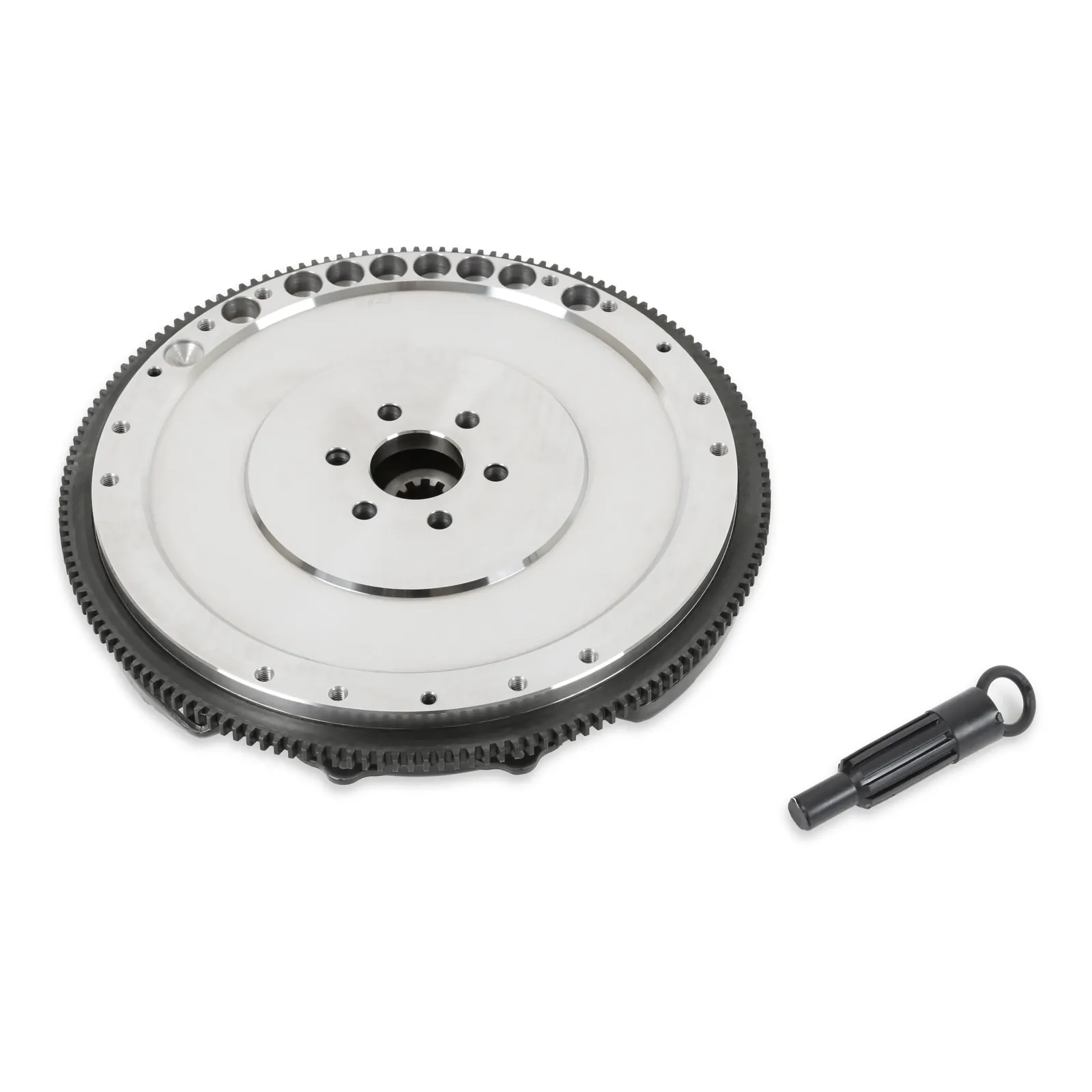

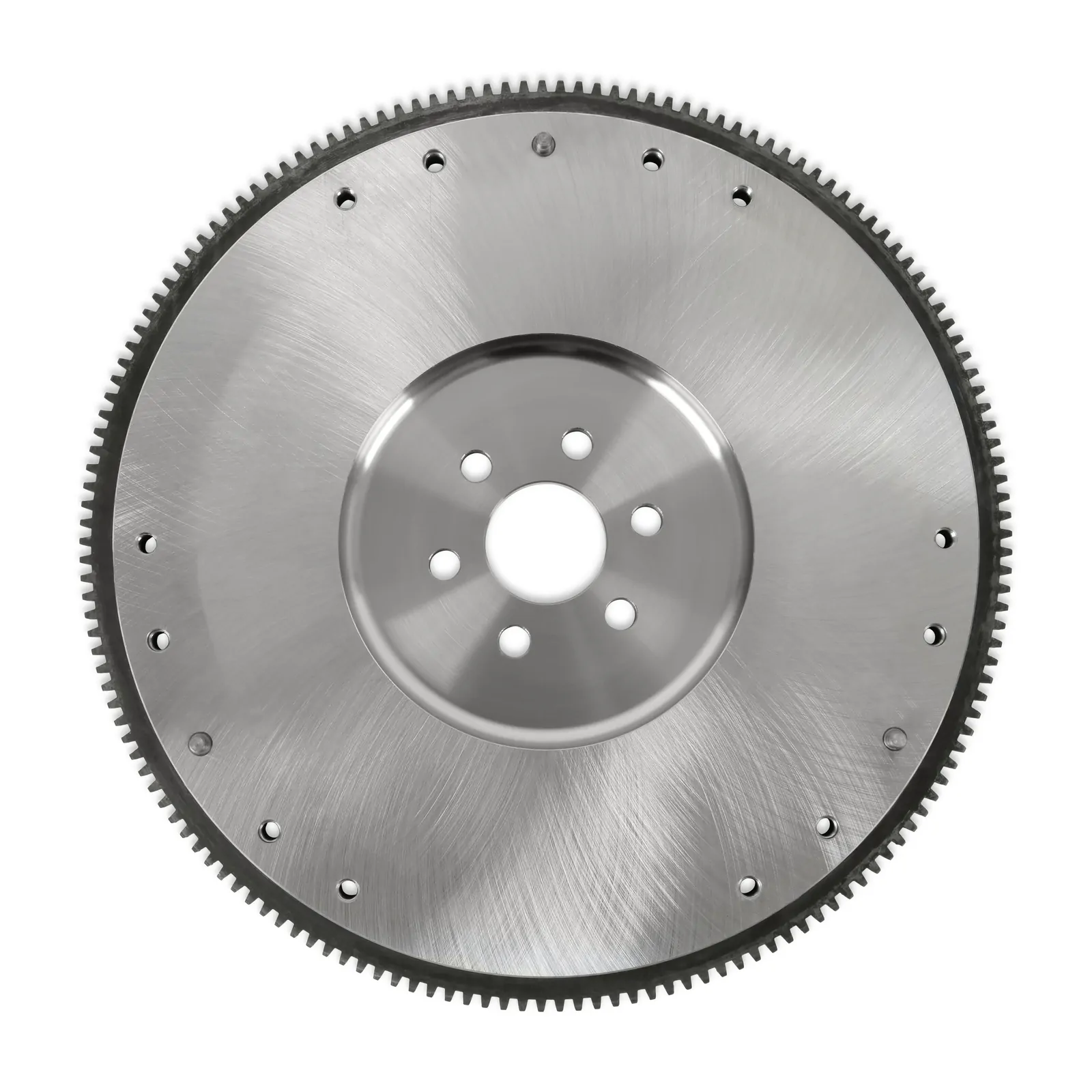

This Hays Hot Street Clutch kit fits 1982-1997 50oz external balance small block Ford engines. It offers ultimate Street/Strip performance through matched components. A 10.5-inch metallic disc with 6 spring helix sprung hub provides superior grip needed for the strip, while the matched diaphragm style pressure plate provides a pedal feel comfortable enough for the street. This provides 30% more clamping pressure and transmits that through a Billet steel flywheel. These matched components provide the peace of mind purchase you've come to expect over the years from Hays.
Features:
- Designed for power levels up to 550 naturally aspirated horsepower (500 hp for forced induction/nitrous)
| # of Teeth | 157 |
|---|---|
| Alignment Tool Included | Yes |
| Application | Ford |
| Brand | Hays |
| Category | Transmission and Drivetrain |
| Disc Diameter | 10.5 |
| Disc Style | Sprung Hub |
| Emission Code | 5 |
| Engine | Ford Small Block |
| Engine Balance | 50 oz. External |
| Flywheel Included | Yes |
| Input Shaft Diameter | 1-1/8 in. |
| Input Spline | 10 |
| Max Horsepower | 550 |
| Pilot Bushing Included | No |
| Pressure Plate Style | Diaphragm |
| Product Type | Clutch Kits |
| Throwout Bearing Included | No |
This Hays Hot Street Clutch kit fits 1982-1997 50oz external balance small block Ford engines. It offers ultimate Street/Strip performance through matched components. A 10.5-inch metallic disc with 6 spring helix sprung hub provides superior grip needed for the strip, while the matched diaphragm style pressure plate provides a pedal feel comfortable enough for the street. This provides 30% more clamping pressure and transmits that through a Billet steel flywheel. These matched components provide the peace of mind purchase you've come to expect over the years from Hays.
Features:
- Designed for power levels up to 550 naturally aspirated horsepower (500 hp for forced induction/nitrous)
| # of Teeth | 157 |
|---|---|
| Alignment Tool Included | Yes |
| Application | Ford |
| Brand | Hays |
| Category | Transmission and Drivetrain |
| Disc Diameter | 10.5 |
| Disc Style | Sprung Hub |
| Emission Code | 5 |
| Engine | Ford Small Block |
| Engine Balance | 50 oz. External |
| Flywheel Included | Yes |
| Input Shaft Diameter | 1-1/8 in. |
| Input Spline | 10 |
| Max Horsepower | 550 |
| Pilot Bushing Included | No |
| Pressure Plate Style | Diaphragm |
| Product Type | Clutch Kits |
| Throwout Bearing Included | No |
