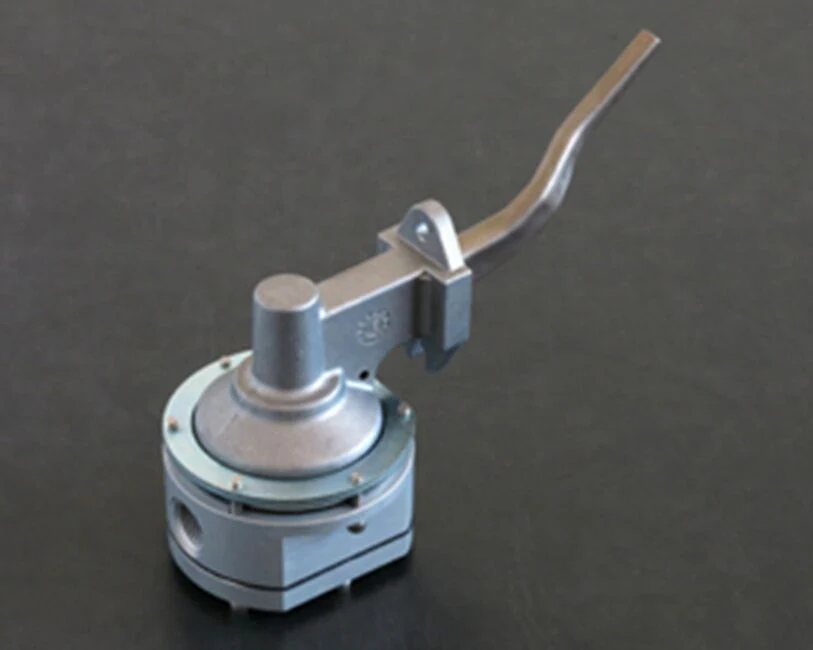

Robbie Mac Performance Holden 253 308 High Performance Fuel Pump 550hp
Robbie Mac Performance Holden 253 308 High Performance Fuel Pump 550hp
RBB1116
Holden 550HP Fuel Pump Specifications:
- For Engines Up To 550 horsepower
- Valve Body Can Be Rotated To Any Angle: No Disassembly Required
- Maximum Output Pressure: 7 PSI (+/- 1)
- Side Inlet Port: 1/2 NPT
- Side Outlet Port (180 degrees from the Inlet): 3/8 NPT
- Bottom Outlet Port: 1/2 NPT
- Bottom "Vapor Return" Port: 1/8 NPT (metered)
- Recommended Fuel: Gasoline or gasoline/ethanol blends
- Recommended MINIMUM Feed Line Size: 5/16" up to 350 hp; 3/8" (or 6AN) up to 450 hp; 1/2" (or 8AN) up to 550 hp
Robbie Mac Performance Holden 253 308 High Performance Fuel Pump 550hp
RBB1116
Holden 550HP Fuel Pump Specifications:
- For Engines Up To 550 horsepower
- Valve Body Can Be Rotated To Any Angle: No Disassembly Required
- Maximum Output Pressure: 7 PSI (+/- 1)
- Side Inlet Port: 1/2 NPT
- Side Outlet Port (180 degrees from the Inlet): 3/8 NPT
- Bottom Outlet Port: 1/2 NPT
- Bottom "Vapor Return" Port: 1/8 NPT (metered)
- Recommended Fuel: Gasoline or gasoline/ethanol blends
- Recommended MINIMUM Feed Line Size: 5/16" up to 350 hp; 3/8" (or 6AN) up to 450 hp; 1/2" (or 8AN) up to 550 hp
$504.06
Robbie Mac Performance Holden 253 308 High Performance Fuel Pump 550hp—
$504.06
Description
Robbie Mac Performance Holden 253 308 High Performance Fuel Pump 550hp
RBB1116
Holden 550HP Fuel Pump Specifications:
- For Engines Up To 550 horsepower
- Valve Body Can Be Rotated To Any Angle: No Disassembly Required
- Maximum Output Pressure: 7 PSI (+/- 1)
- Side Inlet Port: 1/2 NPT
- Side Outlet Port (180 degrees from the Inlet): 3/8 NPT
- Bottom Outlet Port: 1/2 NPT
- Bottom "Vapor Return" Port: 1/8 NPT (metered)
- Recommended Fuel: Gasoline or gasoline/ethanol blends
- Recommended MINIMUM Feed Line Size: 5/16" up to 350 hp; 3/8" (or 6AN) up to 450 hp; 1/2" (or 8AN) up to 550 hp
