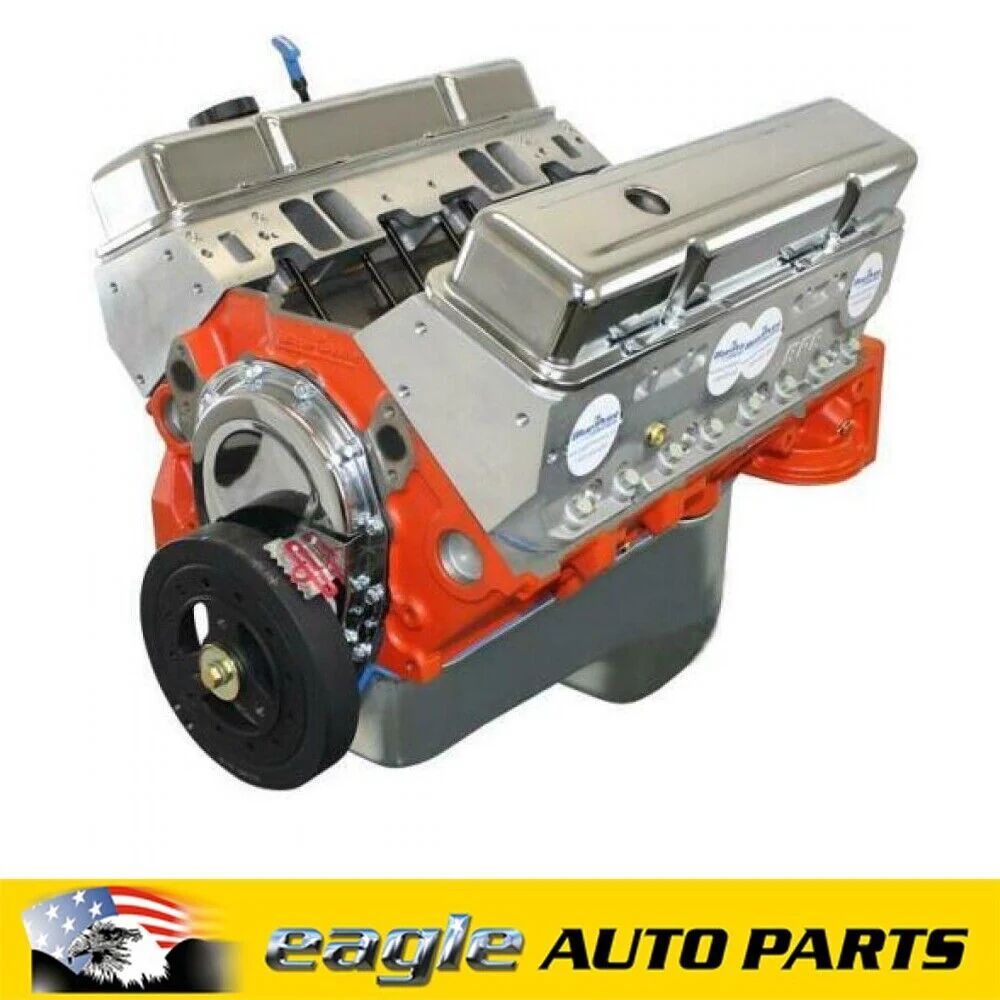

Blueprint Engines Chev 427 SBC Stroker Long Crate Engine 540hp # PS4272CT1

Product image 1
1 / 2

Blueprint Engines Chev 427 SBC Stroker Long Crate Engine 540hp # PS4272CT1

Blueprint Chev 427 Small Block Stroker Long Crate Engine 540hp # PS4272CT1

HP & Torque: 540 HP / 535 FT LBS
Compression Ratio: 10.0:1
Aluminum Heads
Hydraulic Roller Cam
Forged Crank
Forged Pistons

BLOCK:

  • NEW BluePrint Cast Iron Block
    Manufactured and Machined in the USA!
    4-Bolt Main
    4.125" Bore
    2-Piece Rear Main Seal
    Mech fuel pump provision: Yes
    Passenger Side Dipstick
  • Drilled and tapped for clutch linkage

ROTATING ASSEMBLY:

  • New BluePrint Forged Crankshaft
    4.000" Stroke
    Forged 6.000" connecting rods
    Forged Pistons
    Internal Front/ Internal Rear

CYLINDER HEADS:

  • BluePrint Aluminum Cylinder Heads - HP8103
    64cc chamber
    2.08" intake/1.60" exhaust valves
    220cc intake/67cc exhaust runners

CAM SPECS:

  • Cam Type: Roller
    .577 Intake .577 Exhaust
    240 Intake / 248 Exhaust duration
    @ .050 - 112 degree lobe separation

IGNITION TIMING:

Initial timing - 10-160 and Total timing 32-340

ALSO INCLUDES:

  • Valve covers, oil pan and timing cover
    Harmonic balancer
    Dyno test results shipped with engine

Blueprint Chev 427 Small Block Stroker Long Crate Engine 540hp # PS4272CT1

HP & Torque: 540 HP / 535 FT LBS
Compression Ratio: 10.0:1
Aluminum Heads
Hydraulic Roller Cam
Forged Crank
Forged Pistons

BLOCK:

  • NEW BluePrint Cast Iron Block
    Manufactured and Machined in the USA!
    4-Bolt Main
    4.125" Bore
    2-Piece Rear Main Seal
    Mech fuel pump provision: Yes
    Passenger Side Dipstick
  • Drilled and tapped for clutch linkage

ROTATING ASSEMBLY:

  • New BluePrint Forged Crankshaft
    4.000" Stroke
    Forged 6.000" connecting rods
    Forged Pistons
    Internal Front/ Internal Rear

CYLINDER HEADS:

  • BluePrint Aluminum Cylinder Heads - HP8103
    64cc chamber
    2.08" intake/1.60" exhaust valves
    220cc intake/67cc exhaust runners

CAM SPECS:

  • Cam Type: Roller
    .577 Intake .577 Exhaust
    240 Intake / 248 Exhaust duration
    @ .050 - 112 degree lobe separation

IGNITION TIMING:

Initial timing - 10-160 and Total timing 32-340

ALSO INCLUDES:

  • Valve covers, oil pan and timing cover
    Harmonic balancer
    Dyno test results shipped with engine
$14,867.93
Blueprint Engines Chev 427 SBC Stroker Long Crate Engine 540hp # PS4272CT1—
$14,867.93

Description

Blueprint Chev 427 Small Block Stroker Long Crate Engine 540hp # PS4272CT1

HP & Torque: 540 HP / 535 FT LBS
Compression Ratio: 10.0:1
Aluminum Heads
Hydraulic Roller Cam
Forged Crank
Forged Pistons

BLOCK:

  • NEW BluePrint Cast Iron Block
    Manufactured and Machined in the USA!
    4-Bolt Main
    4.125" Bore
    2-Piece Rear Main Seal
    Mech fuel pump provision: Yes
    Passenger Side Dipstick
  • Drilled and tapped for clutch linkage

ROTATING ASSEMBLY:

  • New BluePrint Forged Crankshaft
    4.000" Stroke
    Forged 6.000" connecting rods
    Forged Pistons
    Internal Front/ Internal Rear

CYLINDER HEADS:

  • BluePrint Aluminum Cylinder Heads - HP8103
    64cc chamber
    2.08" intake/1.60" exhaust valves
    220cc intake/67cc exhaust runners

CAM SPECS:

  • Cam Type: Roller
    .577 Intake .577 Exhaust
    240 Intake / 248 Exhaust duration
    @ .050 - 112 degree lobe separation

IGNITION TIMING:

Initial timing - 10-160 and Total timing 32-340

ALSO INCLUDES:

  • Valve covers, oil pan and timing cover
    Harmonic balancer
    Dyno test results shipped with engine
