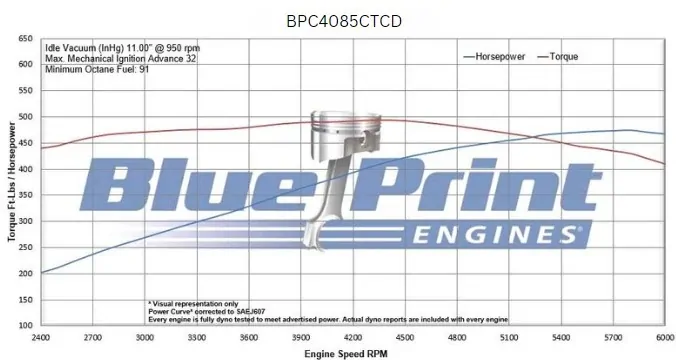

• HP & Torque: 465 HP / 494 FT LBS
  Compression Ratio: 10:1
  Aluminum Heads
  Roller Cam
  Cast Steel Crank
  Forged Pistons

BLOCK:

• Hand picked seasoned Magnum block
  Square and parallel decked
  Align honed main bearing bore
  Cylinders honed on computer controlled machine to within .0002 straightness and roundness
  Cylinders are sonic tested for thickness
  2-Bolt Main
  4.000" Bored .040" over
  2-Piece Rear Main Seal
  Mech fuel pump provision: Yes

ROTATING ASSEMBLY:

• New Steel crankshaft
  4.000" Stroke
  Forged Magnum 6.123" connecting rods w/ 150,000 psi bolts
  Forged pistons
  External

CYLINDER HEADS:

• BluePrint Engines Assembled and Machined Edelbrock 61769 Casting
• Aluminum Magnum Pattern Cylinder Heads - 58cc chamber
• Aluminum Roller Rockers
• 2.02" intake/1.60" exhaust valves
  176cc intake/75cc exhaust runners

CAM SPECS:

• Cam Type: Roller
  .580 Intake .577 Exhaust
  236 Intake / 242 Exhaust duration
  @ .050 - 110 degree lobe separation

IGNITION TIMING:

• 34 degrees total at 4000 RPM
