DESCRIPTION:

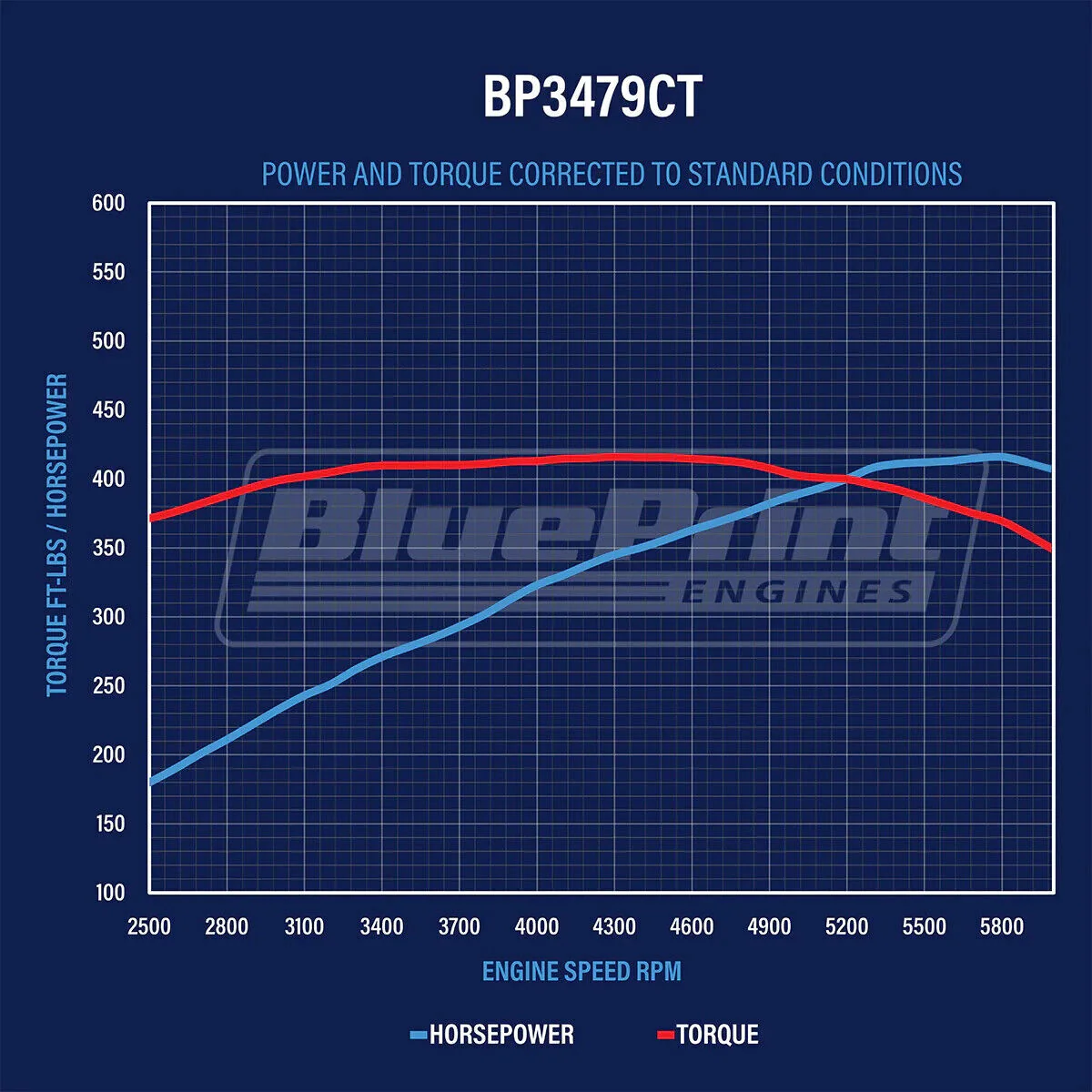

• HP & Torque: 415 HP / 415 FT LBS
• Compression ratio: 10.0:1
• Aluminum heads
• Hydraulic roller cam

BLOCK:

• NEW BluePrint Engines' high-strength cast iron block
• Increased deck thickness and strength webbing
• Priority main oiling
• 4-bolt main
• 1-piece rear main seal
• Improved water jacket design

ROTATING ASSEMBLY:

• 3.400" stroke
• Forged 5.400" connecting rods
• Forged pistons
• 28oz external balance

CYLINDER HEADS:

• BluePrint aluminum cylinder heads -HP9009
• 60cc chamber
• 2.02" intake/1.60" exhaust valves
• 190cc intake/60cc exhaust runners

CAM SPECS:

• Roller cam
• .543 intake / .554 exhaust
• 218 intake / 226 exhaust duration
• @ .050 - 112-degree lobe separation

IGNITION TIMING:

• 10-16 degrees initial, 32-34 total

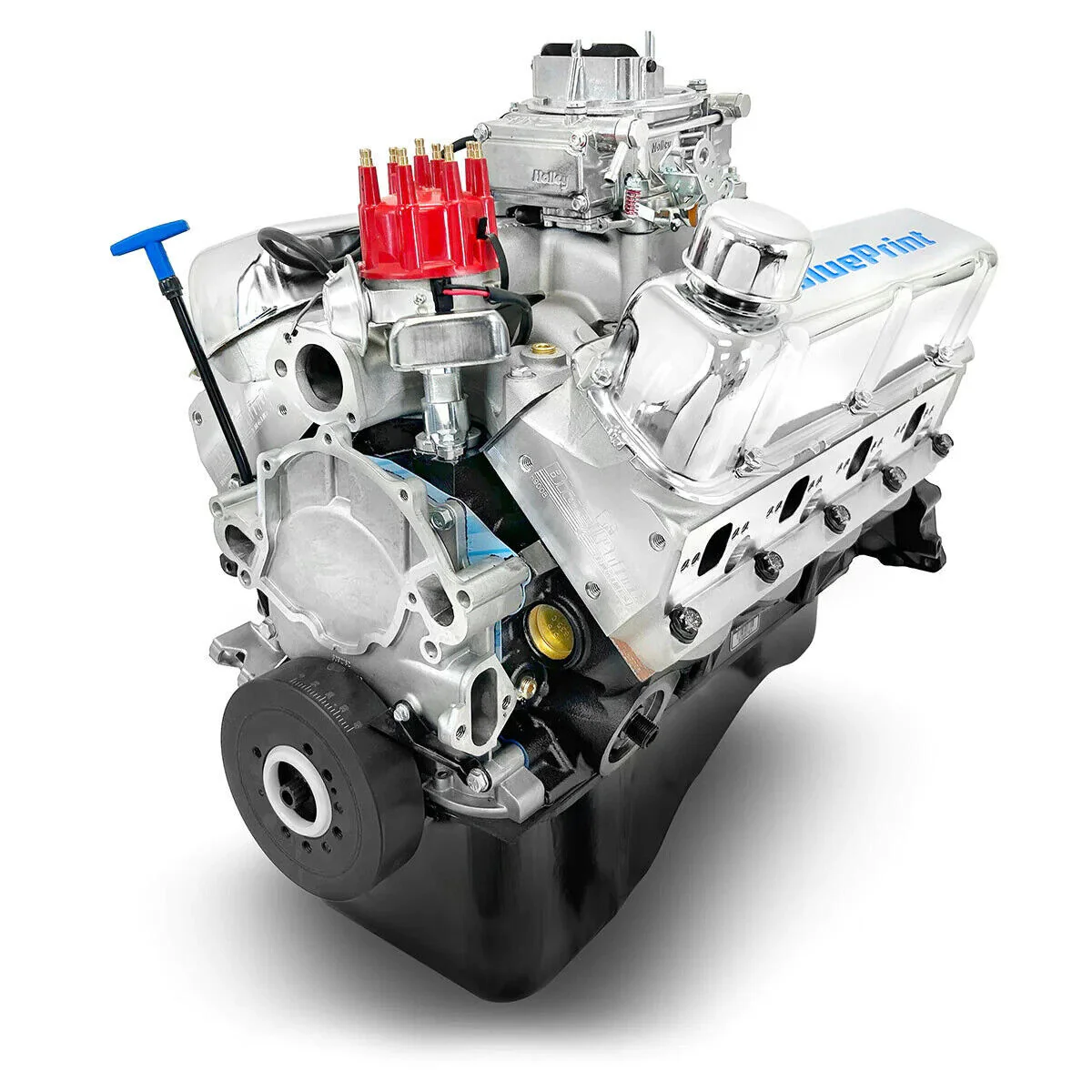

ALSO INCLUDES:

• Front sump oil pan
• Intake manifold
• Carburetor
• Distributor
• Harmonic balancer
• Valve covers
• Timing cover

NOTES:

• Engine timing cover is designed for standard rotation water pump and pulley kit ONLY
